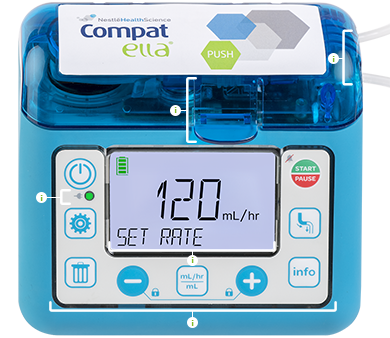

Pump Front
Move your mouse over and click on Compat Ella® to learn more about her layout.
  • Zone 1
  • Zone 2
  • Zone 3
  • Zone 4
  • Zone 5
  1. pump-front.jpg
    Pump Front
  2. keypad-2.png
  3. icons.jpg
    Screen Icons
  4. battery.jpg
  5. color-screens.jpg
    Pump Status
    & Colours
  6. pump-rear.jpg
    Pump Rear
  • Administration Sets Available
  • • Spike set with ENPlus
    • 1.5-Liter bag set
    • Universal nutrition connector set
    • Double spike set

    All administration sets have an Auto-Anti-Free-Flow (AAFF) safety feature automatically activated until the set is correctly inserted in the pump and the door is closed.

    Product availability might vary locally.

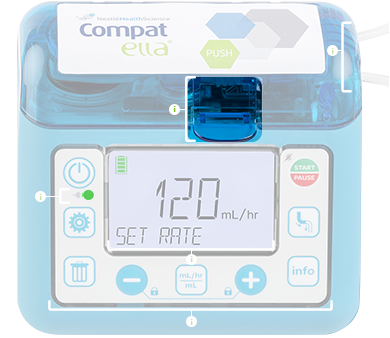

  • Pump Door and Door Latch
  • Open the door to clean the alarm sensors, view set holder, and insert administration set.

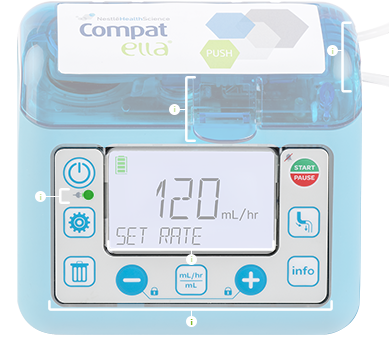

  • Icon-Based Keypad
  • Intuitive button function recognition and ergonomic U-shaped button layout.

    See keypad section for further explanation.

  • AC Power Status Light
  • Solid green = pump is plugged into the AC power.

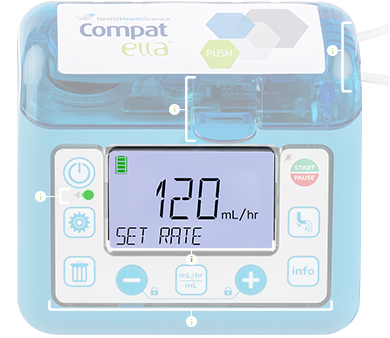

  • Colour Screen
  • Colours are used to help identify pump status and highlight on-screen information.
